CPU

RK3288，ARM Cortex A17，Quad-core，1.8 GHz

GPU

Controller Mali-T764 Frequency 600 MHz

Memory

Type

DDR3L （2GB）

Capacity

2GB(Up to 4 GB)

Display

eDP

2×eDP Port

HDMI

1×HDMI Port, Up to   4K*2K Multiple Display

LVDS

2×LVDS Port（LVDS與eDP 二選一)

MIPI

1×MIPI_DSI

Storage

eMMC

Capacity 8GB(Up to 64 GB)

COM

Port Number

4

Mode

2×rs232，1×TTL，1×rs485

PWR

可選5V/12V供電

Touch panel

Port

I2C Interface and USB Interface

Ethernet

RJ45

10/100Mbps

Wifi /Bluetooth

Wifi

802.11 b/g/n（可選 2.4/5GHz）

Bluetooth

BT-V5.0 BLE

Expansion Slot

Mini_PCIe

3G/4G modular

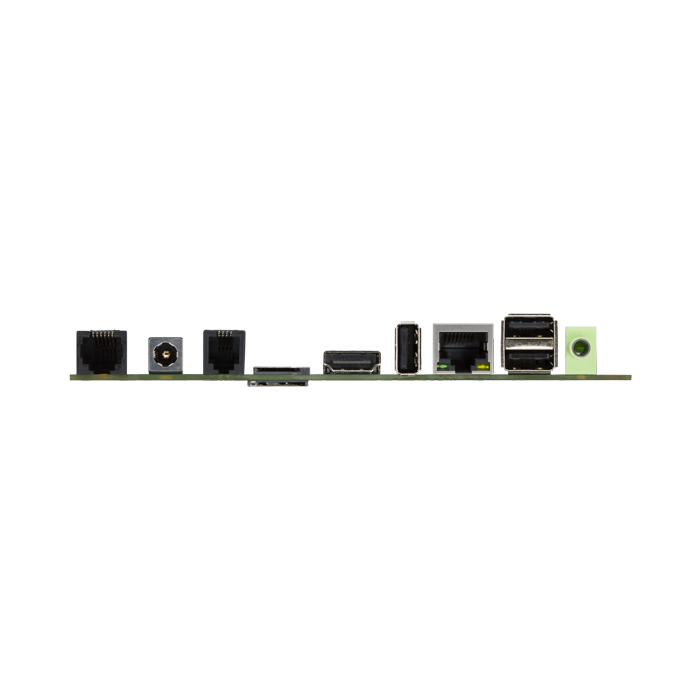

Rear IO

1×DC_IN,DC12V~24V/2A（DC_Jack or 1x4Pin Wafer）,

24V for   printer

1×RJ11，Cash   box controller

1×RJ09，rs232   (5V Power)

1×SIM Slot(With   card tray)

2×USB2.0

1×USB2.0   OTG

1×RJ45 10/100 LAN

1×HDMI

1×Line-out

Internal   Connector

2×LVDS/eDP，2×Backlight

8×USB2.0

2×rs232，1×TTL，1×rs485

1×Speaker   port，2*5W, 8Ω

2×TP   port，I2C Interface

GPIO，8ch

Mechanical & Environment

Dimension

148mm * 102mm

PWR Input

DC12V-24V

Operation

-10~50℃，10%~90%RH，non-condensing

Storage

-40~75℃，5%~95%RH，non-condensing

OS

Android 7.1、Linux4.4

G-3288-02A

 在上述標準配置基礎修改電源輸入為12V
